| Place of Origin: | Jiangsu,China |
| Brand Name: | OEM/ODM |
| Certification: | CE |
| Model Number: | 12V 175W |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Color box,Blister bag |
| Delivery Time: | 15 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Name: | 22.8V 150W Quartz Halogen Lamp | Voltage: | 22.8V |
|---|---|---|---|
| Power: | 150W | Overall Length: | 45mm |
| Light Center: | 18mm | Width: | 16mm |
| Material: | Quartz Glass+Stainless, UV Quartz Glass | Color: | Yellow, Warm White , Blue Yellow, Clear/Bule/Yellow/Rainbow Customized |
| Dimmable: | YES Or NO Customized | Application: | Pin Bulb Crystal Light |
| High Light: | 45mm Quartz Tungsten Halogen Lamp,22.8V Quartz Tungsten Halogen Lamp |
||

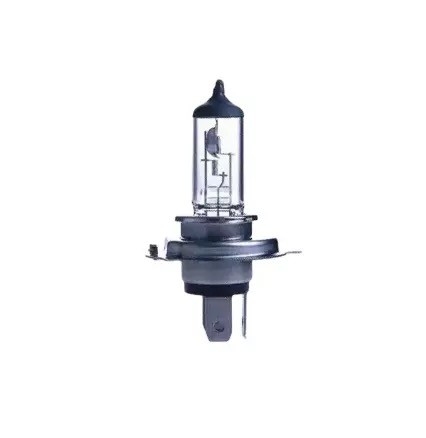

Long Halogen Light Bulbs Quartz Tungsten Halogen Lamp Hid In Reflector Housing
Description Of Quartz Tungsten Halogen Lamp
A tungsten halogen lamp, also called halogen lamp, is a developed tungsten filament lamp. The halogen lamp consists of a tungsten filament that is enclosed in an environment of an inert gas and a small quantity of a halogen such as bromine or iodine.
The combination of the tungsten filament and halogen results in a chemical reaction known as halogen cycle, which increases the life of the filament and eliminates the drawbacks of an ordinary filament lamp.
The halogen lamp was developed by E. G. Fridrich and E. H. Wiley in 1958 by introducing a halogen gas inside the incandescent lamp. The working principle of the halogen lamp is based on the halogen cycle.
Specification Of Quartz Tungsten Halogen Lamp
|
Item Name
|
Halogen Light Bulb
|
Voltage
|
12V
|
|
Base
|
P43t / P45t
|
Wattage
|
60/55W
|
|
Base Material
|
Stainless steel
|
Certification
|
E1, E4, RoHS
|
|
Glass material
|
glass
|
Color Temp
|
3000K, 3800K,5000K
|
|
Packing
|
Plastic box
|
Vision
|
Clear, Yellow, Blue and Rainbow color
|
A. Quartz Halogen Headlights
B. Quartz Infrared Heater Bulbs
C. Stage Light Halogen Bulb
D. Television Light Bulb
E. Quartz Halogen Spotlight Bulb
F. Tungsten Halogen Projector Lamp
G. Microscope Light Bulb
H. Aircraft Navigation Light Bulbs
I. Instrument Light Bulbs
J. Studio Lamp Halogen
K. Aircraft Halogen Lamp
L. Film Light Bulbs
M. Movie Light Bulb
N. Halogen Display Optic Lamp
O. Halogen Photo Optic Lamp
P. Quartz Lamp Iodine
Q. Marine Halogen Lights
R. Halogen Boat Lights
S. Auto Headlight Bulbs
T. Car Projector Headlight Bulbs
U. Medical Light Bulbs
V. Surgical Lamp Light
W. Locomotive Headlight Bulb
X. Railway Train Headlamp
ETC.
Catalogue Of Quartz Halogen Bulb
| Model | Specification | Base |
| Quartz Halogen Bulb | 6.6A 45W | GX6.35 |
| Quartz Halogen Bulb | 30V 200W | G6.35 |
| Quartz Halogen Bulb | 110v 400w | SFC |
| Quartz Halogen Bulb | 120V 250W | E11 |
| Quartz Halogen Bulb | 120V 500W | G9.5 |
| Quartz Halogen Bulb | 120V 1000W | G38/G9.5 |
| Quartz Halogen Bulb | 230V 105W | E27 |
| Quartz Halogen Bulb | 230V 205W | E27 |
| Quartz Halogen Bulb | 230V250W | E27 |
| Quartz Halogen Bulb | 230V 1000W | GY9.5/G22 |
| Quartz Halogen Bulb | 240V 500W | G9.5 |
| Quartz Halogen Bulb | 240V 1000W | G9.5 |
| Quartz Halogen Bulb | 6.6A 50W 100W 150W 200W | / |
| Quartz Halogen Bulb | 6.6A 150W | / |
| Quartz Halogen Bulb | 12V 175W | / |
| Quartz Halogen Bulb | 22.8V 150W | / |
| Quartz Halogen Bulb | 24V 250W | / |
| Quartz Halogen Bulb | 28V 75W | / |
| Quartz Halogen Bulb | 30V 400W | / |
| Quartz Halogen Bulb | 80V 1200W | / |
| Quartz Halogen Bulb | 110V 350W | / |
| Quartz Halogen Bulb | 120V 750W | / |
Tips to Improve the Life Of Quartz Halogen Bulb
➊ Keep the surface of the bulb clean, and do not touch the glass part of the bulb directly with your hands during use
If there are fingerprints, wipe with a dry cloth dipped in alcohol.
❷ Try to avoid strong vibration before and after using the bulb, and handle it with care to avoid burning the filament.
❸ The light bulb will generate high temperature during use, so please do not touch it with your hands, and do not use flammable and explosive items
near.
❹ The filament is brittle just after the bulb is turned off, so avoid vibration, do not move it immediately, and
Try to move the filament only after it has cooled down.
