| Place of Origin: | Jiangsu,China |
| Brand Name: | OEM/ODM |
| Certification: | CE |
| Model Number: | 22.8V 40W |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Color box,Blister bag |
| Delivery Time: | 15 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Name: | 22.8V 40W Quartz Halogen Bulb Grinder Projector Lamp Crystal Pin Tungsten Bulb | Voltage: | 22.8V |
|---|---|---|---|
| Power: | 40W | Base Type: | G6.35 |
| Lumen Flux（lm）: | 1000 Lumen | Overall Length: | 38mm |
| Light Center Height: | 18mm | Width: | 11mm |
| Color Temperature(CCT): | 3000k | Working Lifetime(Hour): | 1000 |
| Material: | Quartz Glass+Stainless, UV Quartz Glass | Color: | Yellow, Warm White , Blue Yellow, Clear/Bule/Yellow/Rainbow Customized |
| Dimmable: | YES Or NO Customized | Application: | Grinder Projector Quartz Halogen Bulb |
| High Light: | 22.8V 40w halogen bulb,22.8V 40w Quartz Iodine Lamp,40 watt halogen bulb |
||

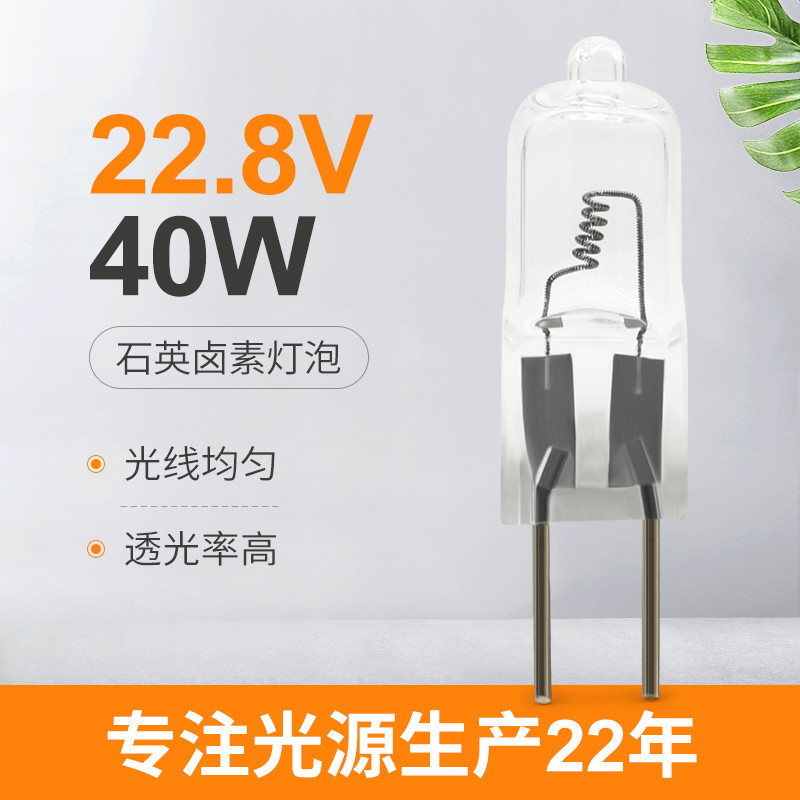

22.8V 40W Quartz Halogen Bulb Grinder Projector Lamp Crystal Pin Tungsten Bulb
Halogen Lamp Beads Crystal Lamp Quartz Pin Bulb Photography Tungsten Halogen Bulb
Halogen lamp cup lamp beads Crystal lamp pin bulb halogen lamp beads
Halogen lamp beads crystal lamp pin bulb Lighting display lamp halogen bulb
Pin Bulb Crystal Lamp Low Voltage Halogen Lamp Bead Crystal Lamp Pin Bulb Projector Machine Tool Operation Shadowless Halogen Bulb Lighting Display Bulb Halogen Crystal Lamp Pin Bulb Tungsten Halogen Small Lamp Bead Insert Bulb

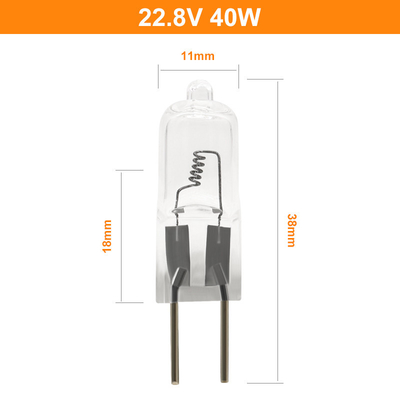

Specification Of Quartz Halogen Bulb
| Name | 22.8v 40w Quartz Halogen Bulb Grinder Projector Lamp Crystal Pin Tungsten Bulb |
| Power | 40w |
| Lumen Flux(Lm) | 1000 Lumen |
| Overall Length | 38mm |
| Width | 11mm |
| Working Lifetime(Hour) | 1000 Hours |
| Color | Yellow, Warm White , Blue Yellow, Clear/Bule/Yellow/Rainbow Customized |
| Application | Grinder Projector Quartz Halogen Bulb |
| Voltage | 22.8v |
| Base Type | G6.35 |
| Light Center Height | 18mm |
| Color Temperature(Cct) | 3000k |
| Material | Quartz Glass+Stainless, Uv Quartz Glass |
| Dimmable | Yes Or No Customized |
Application Of Quartz Halogen Bulb
A. Quartz Halogen Headlights
B. Quartz Infrared Heater Bulbs
C. Stage Light Halogen Bulb
D. Television Light Bulb
E. Quartz Halogen Spotlight Bulb
F. Tungsten Halogen Projector Lamp
G. Microscope Light Bulb
H. Aircraft Navigation Light Bulbs
I. Instrument Light Bulbs
J. Studio Lamp Halogen
K. Aircraft Halogen Lamp
L. Film Light Bulbs
M. Movie Light Bulb
N. Halogen Display Optic Lamp
O. Halogen Photo Optic Lamp
P. Quartz Lamp Iodine
Q. Marine Halogen Lights
R. Halogen Boat Lights
S. Auto Headlight Bulbs
T. Car Projector Headlight Bulbs
U. Medical Light Bulbs
V. Surgical Lamp Light
W. Locomotive Headlight Bulb
X. Railway Train Headlamp
ETC.
Catalogue Of Quartz Halogen Bulb
| Model | Specification | Lumen(Lm) | Average Life(H) | Base | Application |
| Quartz Halogen Bulb | 22.8V 40W | 1000 | 1000 | G6.35 | Grinder Projector Lamp |
| Quartz Halogen Bulb | 22.8V 50W | 1000 | 1000 | G6.35 | Surgical Shadowless Light Bulb |
| Quartz Halogen Bulb | 24V 50W | 1000 | 100 | E11 | Medical Single Hole Cold Light |
| Quartz Halogen Bulb | 24V 250W | 6250 | 50 | G6.35 | Surgery Shadowless Halogen Bulb |
| Quartz Halogen Bulb | 75V 350W | 8750 | 2000 | GX6.35 | Car Fog Lights Front Lighting |
| Quartz Halogen Bulb | 75V 400W | 8750 | 2000 | GX6.35 | Photography Tungsten Halogen Bulb |
| Quartz Halogen Bulb | 80V 1200W/230V 1000W | 30000 | 300 | G22 | Quartz Concentrating Tungsten Halogen Bulb |
| Quartz Halogen Bulb | 100V 500W | 12500 | 50 | GY9.5 | Optical Instrument Microscope Lamp |
| Quartz Halogen Bulb | 110V 600W | 13200 | 500 | P40s/41 | Train Locomotive Headlights Car Tail Light |
| Quartz Halogen Bulb | 120V 650W | 16250 | 300 | GY9.5 | Commercial Video Lights Stage Lights |
| Quartz Halogen Bulb | 120V 2000W | 50000 | 300 | GY16/G22 | Film And Television Fill Light |
| Quartz Halogen Bulb | 127V 600W | 15000 | 75 | GY9.5 | Ball Halogen Lamp Stage Video Lamp |
| Quartz Halogen Bulb | 230V 650W | 16250 | 300 | GY9.5 | Ball Halogen Lamp |
| Quartz Halogen Bulb | 230V 800W | 20000 | 300 | R7S | High Power Film Bulbs |
| Quartz Halogen Bulb | 230V 1000W | 30000 | 300 | G22/GX9.5 | Video Bulb Aviation Ship Light Stage Spot Bulb |
| Quartz Halogen Bulb | 230V 3000W | 75000 | 300 | G38/GY16 | Film and Television Wedding Performance Spotlight Stage |
| Quartz Halogen Bulb | 230V 5000W | 125000 | 300 | G38 | Wedding Bar Stage Light Bulbs |
| Quartz Halogen Bulb | 28v 75w | 1875 | 2000 | 1982SP | Railway Locomotive Halogen Bulbs |
| Quartz Halogen Bulb | 115V 575W | / | 300 | G9.5 | ETC Stage Soft Spot Zoom Light |
| Quartz Halogen Bulb | 115v 750w | / | 2000 | G9.5 | Film And Television Photography Stage |
| Quartz Halogen Bulb | 30V 200W/250W | / | 2000 | / | Lighting Display Bulbs |
| Quartz Halogen Bulb | 230v 115V 575W | / | 2000 | / | Stage Film And Television Light |
| Quartz Halogen Bulb | 115V 1000W | / | 2000 | / | Halogen Display Optic Lamp |
| Quartz Halogen Bulb | 120V 500W | / | 100 | / | Stage Halogen Bulbs |
| Quartz Halogen Bulb | 230V 1250W | / | 300 | / | Iodine Tungsten Lamp |
| Quartz Halogen Bulb | 230V 2000W | / | 300 | / | infrared heater |
Tips to Improve the Life Of Quartz Halogen Bulb
➊ Keep the surface of the bulb clean, and do not touch the glass part of the bulb directly with your hands during use
If there are fingerprints, wipe with a dry cloth dipped in alcohol.
❷ Try to avoid strong vibration before and after using the bulb, and handle it with care to avoid burning the filament.
❸ The light bulb will generate high temperature during use, so please do not touch it with your hands, and do not use flammable and explosive items
near.
❹ The filament is brittle just after the bulb is turned off, so avoid vibration, do not move it immediately, and
Try to move the filament only after it has cooled down.
