| Place of Origin: | Jiangsu,China |
| Brand Name: | OEM/ODM |
| Certification: | CE |
| Model Number: | 230V 1000W |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Color box,Blister bag |
| Delivery Time: | 15 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Name: | 230V 1000W Quartz Halogen Lamp | Voltage: | 230V |
|---|---|---|---|
| Power: | 1000W | Base Type: | GY9.5 |

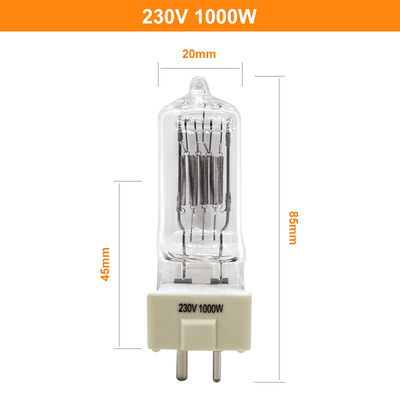

| Overall Length: | 85mm | Width: | 20mm |
| Material: | Quartz Glass+Stainless, UV Quartz Glass | Color: | Yellow, Warm White , Blue Yellow, Clear/Bule/Yellow/Rainbow Customized |
| Dimmable: | YES Or NO Customized | Application: | Film And Television Aviation And Ship Stage Spotlight Bulb |
| High Light: | 230V 1000w quartz halogen light GY9 5,GY9 5 marine searchlight bulbs,1000w halogen lamp |
||

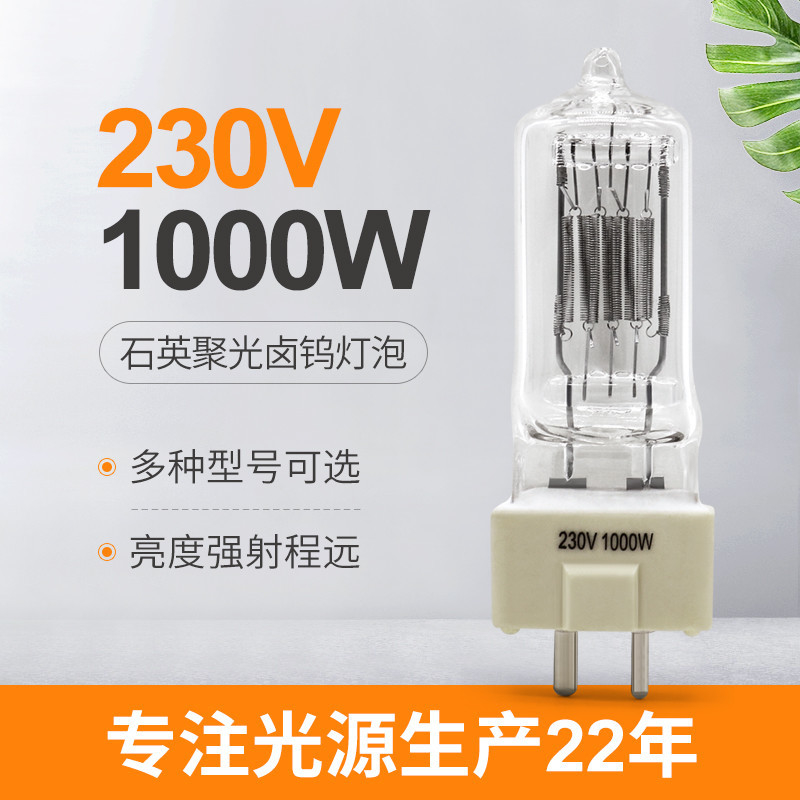

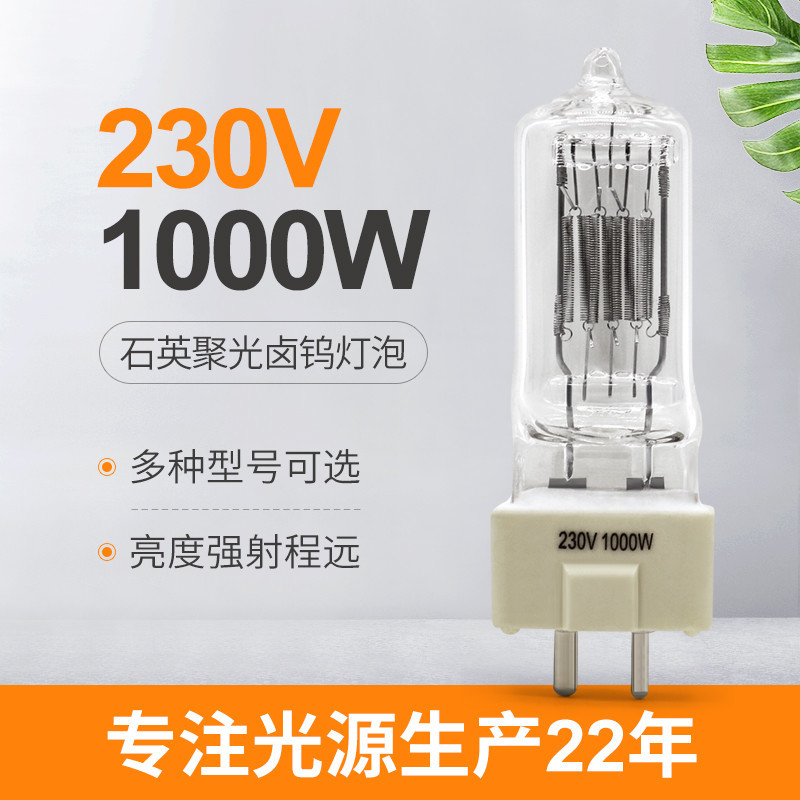

230V 1000W Film and Television Aviation and Ship Stage Spotlight Bulb
Specification Of Quartz Halogen Bulb
| Name | 230V 1000W Quartz Halogen Lamp |
| Voltage | 230V |
| Power | 1000W |
| Width | 20mm |
| Overall Length | 85mm |
| Base Type | GY9.5 |
| Material | Quartz Glass+Stainless, UV Quartz Glass |
| Dimmable | YES Or NO Customized |
| Color | Yellow, Warm White , Blue Yellow, Clear/Bule/Yellow/Rainbow Customized |
| Application | Film And Television Aviation And Ship Stage Spotlight Bulb |
The halide compound reacts at the filament where temperatures approximating 2,500C cause the tungsten and halogen to dissociate. The tungsten deposits onto the colder portions of the filament, and the halogen is freed to continue the cycle.
The filament of a Tungsten Halogen Lamp has two purposes. One is to generate light, and the second is to generate the heat necessary to obtain a wall temperature exceeding 250C.
These lamps have been designed to maintain this required wall temperature when operated at design voltage. A reduction of voltage exceeding 10% from the design voltage will probably result in the wall temperature falling below the required 250C.
Application Of Quartz Halogen Bulb
A. Quartz Halogen Headlights
B. Quartz Infrared Heater Bulbs
C. Stage Light Halogen Bulb
D. Television Light Bulb
E. Quartz Halogen Spotlight Bulb
F. Tungsten Halogen Projector Lamp
G. Microscope Light Bulb
H. Aircraft Navigation Light Bulbs
I. Instrument Light Bulbs
J. Studio Lamp Halogen
K. Aircraft Halogen Lamp
L. Film Light Bulbs
M. Movie Light Bulb
N. Halogen Display Optic Lamp
O. Halogen Photo Optic Lamp
P. Quartz Lamp Iodine
Q. Marine Halogen Lights
R. Halogen Boat Lights
S. Auto Headlight Bulbs
T. Car Projector Headlight Bulbs
U. Medical Light Bulbs
V. Surgical Lamp Light
W. Locomotive Headlight Bulb
X. Railway Train Headlamp
ETC.
Catalogue Of Quartz Halogen Bulb
| Model | Specification | Base |
| Quartz Halogen Bulb | 6.6A 45W | GX6.35 |
| Quartz Halogen Bulb | 30V 200W | G6.35 |
| Quartz Halogen Bulb | 110v 400w | SFC |
| Quartz Halogen Bulb | 120V 250W | E11 |
| Quartz Halogen Bulb | 120V 500W | G9.5 |
| Quartz Halogen Bulb | 120V 1000W | G38/G9.5 |
| Quartz Halogen Bulb | 230V 105W | E27 |
| Quartz Halogen Bulb | 230V 205W | E27 |
| Quartz Halogen Bulb | 230V250W | E27 |
| Quartz Halogen Bulb | 230V 1000W | GY9.5/G22 |
| Quartz Halogen Bulb | 240V 500W | G9.5 |
| Quartz Halogen Bulb | 240V 1000W | G9.5 |
| Quartz Halogen Bulb | 6.6A 50W 100W 150W 200W | / |
| Quartz Halogen Bulb | 6.6A 150W | / |
| Quartz Halogen Bulb | 12V 175W | / |
| Quartz Halogen Bulb | 22.8V 150W | / |
| Quartz Halogen Bulb | 24V 250W | / |
| Quartz Halogen Bulb | 28V 75W | / |
| Quartz Halogen Bulb | 30V 400W | / |
| Quartz Halogen Bulb | 80V 1200W | / |
| Quartz Halogen Bulb | 110V 350W | / |
| Quartz Halogen Bulb | 120V 750W | / |
Tips to Improve the Life Of Quartz Halogen Bulb
➊ Keep the surface of the bulb clean, and do not touch the glass part of the bulb directly with your hands during use
If there are fingerprints, wipe with a dry cloth dipped in alcohol.
❷ Try to avoid strong vibration before and after using the bulb, and handle it with care to avoid burning the filament.
❸ The light bulb will generate high temperature during use, so please do not touch it with your hands, and do not use flammable and explosive items
near.
❹ The filament is brittle just after the bulb is turned off, so avoid vibration, do not move it immediately, and
Try to move the filament only after it has cooled down.
